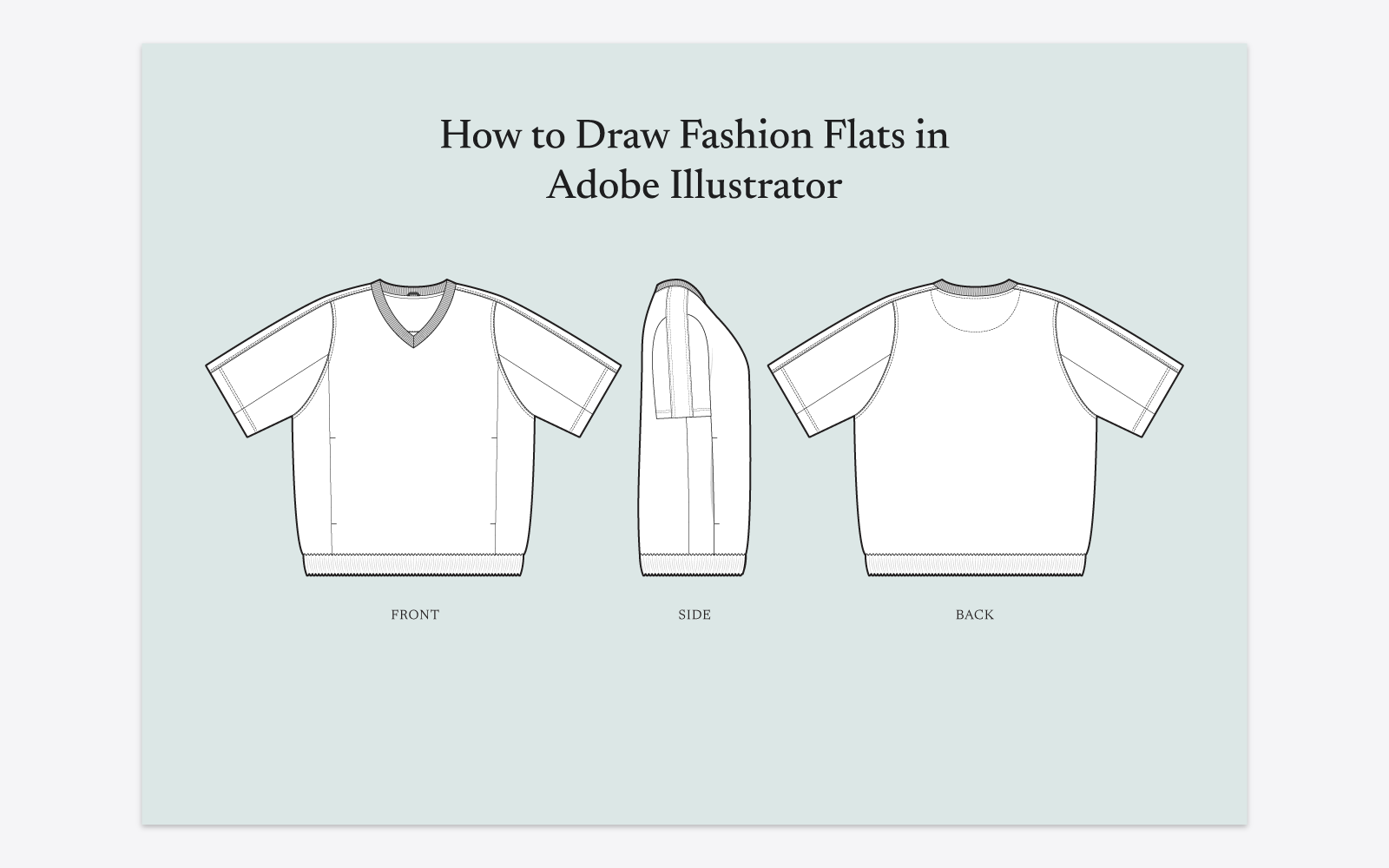

If you have Adobe Illustrator skills and want to draw your own fashion flat sketches completely from scratch, rather than starting from a template or editing an existing one, this guide walks through the full process in detail, from setting up your document to exporting a production-ready file. If you're looking for a faster overview instead, our guide to creating vector fashion flats covers the same ground at a higher level. This post goes step by step for anyone building a flat sketch from a blank artboard for the first time.
Drawing accurate flats takes practice, but understanding the right workflow from the beginning will save you a significant amount of time and frustration. If at any point this feels like more than you want to take on yourself, that is completely normal, many designers choose to outsource this step entirely, and we cover that option at the end of this guide as well.
Step 1: Set Up Your Document Correctly
Start with a clean, appropriately sized artboard, typically landscape orientation works well for most garment types. Set up your layers before you begin drawing. A common approach is to use separate layers for the base silhouette, construction details such as seams and stitching, and any color or shading, so you can toggle them independently as you work.
Step 2: Establish the Base Silhouette
Using the Pen tool, begin outlining the overall silhouette of the garment. Focus on getting the proportions accurate before worrying about any details. If you are working from a reference photo, it can help to place the image on its own locked layer underneath your artwork and trace over it directly, adjusting for proportional accuracy as you go.
1. Draw the main outline of the garment using the Pen tool, working in small anchor point segments for smoother curves.
2. Keep both sides as symmetrical as possible, using the Reflect tool to mirror one half onto the other for a cleaner, more professional result.
3. Check your proportions against a real reference before moving forward, since small proportion errors are much easier to fix at this stage than later.
Step 3: Add Construction Details
This is where flat sketches differ most clearly from illustrations. Every seam line, dart, pocket, zipper, and panel needs to be drawn accurately and placed exactly where it will appear on the finished garment. Use a thinner stroke weight for interior construction lines compared to the bold outer silhouette line, this creates visual hierarchy and makes the sketch easier to read at a glance.
• Use consistent stroke weights throughout: typically a heavier weight for the outer silhouette and a lighter weight for interior details
• Draw topstitching as a dashed line to visually distinguish it from seam lines
• Keep pocket placement, button spacing, and other repeated details evenly spaced using Illustrator's alignment and distribute tools
Step 4: Draw the Back View
A complete flat sketch typically includes both a front and back view. Duplicate your base silhouette, mirror it if needed, and adjust the construction details to reflect what is actually on the back of the garment, which is often different from the front, such as back yokes, zippers, or different seam placement.
Step 5: Refine and Clean Up Your Line Work
Once the full sketch is complete, go back through and clean up any inconsistent line weights, overlapping anchor points, or uneven curves. This step is easy to rush, but a clean, polished flat sketch is significantly easier for a manufacturer to read accurately than one with messy or inconsistent line work.
Step 6: Export in the Right Format
Save your working file as an editable AI file so it can be adjusted later if needed. For sharing with manufacturers or including in a tech pack, export a high resolution PDF or EPS version as well, since these formats preserve vector quality at any size.
Common Mistakes to Watch For
• Asymmetrical proportions between the left and right side of the garment
• Inconsistent stroke weights that make the sketch harder to read
• Missing construction details that seem obvious to you but are not actually drawn on the page
• Forgetting the back view entirely, which is a required part of a complete flat sketch
If This Feels Like a Lot
Drawing accurate flat sketches is a genuine skill that takes time to develop, and there is no shame in deciding it is not the best use of your time as a designer, particularly if you are trying to move quickly on getting a collection into production. Many designers choose to focus their energy on design and business development, while outsourcing the technical drawing work entirely.
If you would rather send us your sketch, reference photo, or idea and have our team produce a clean, professional, production ready flat sketch on your behalf, our Custom Flat Sketch Service handles exactly this. Reach out through our Contact page to get started.
