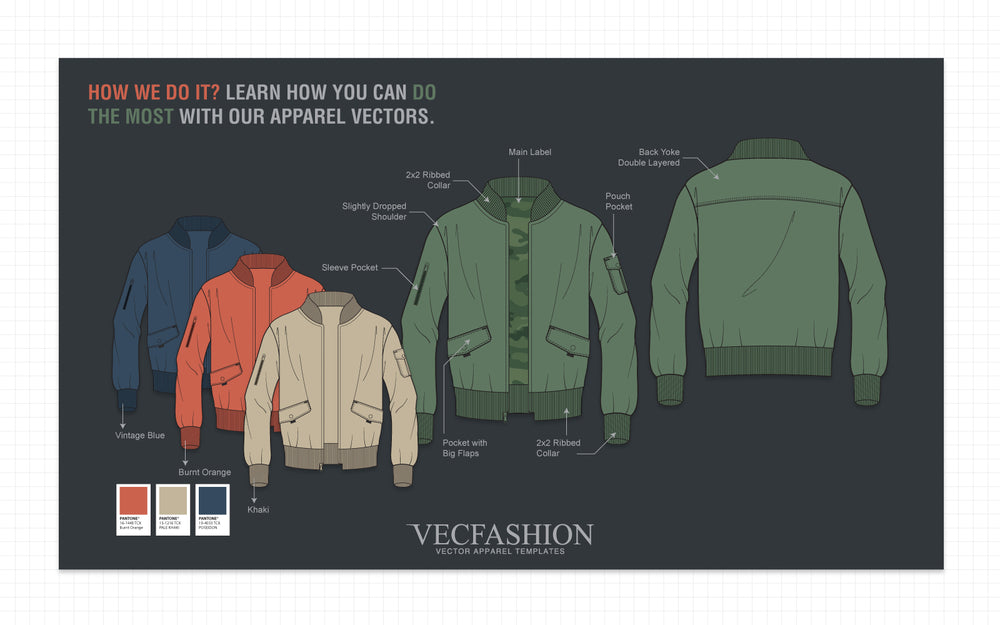

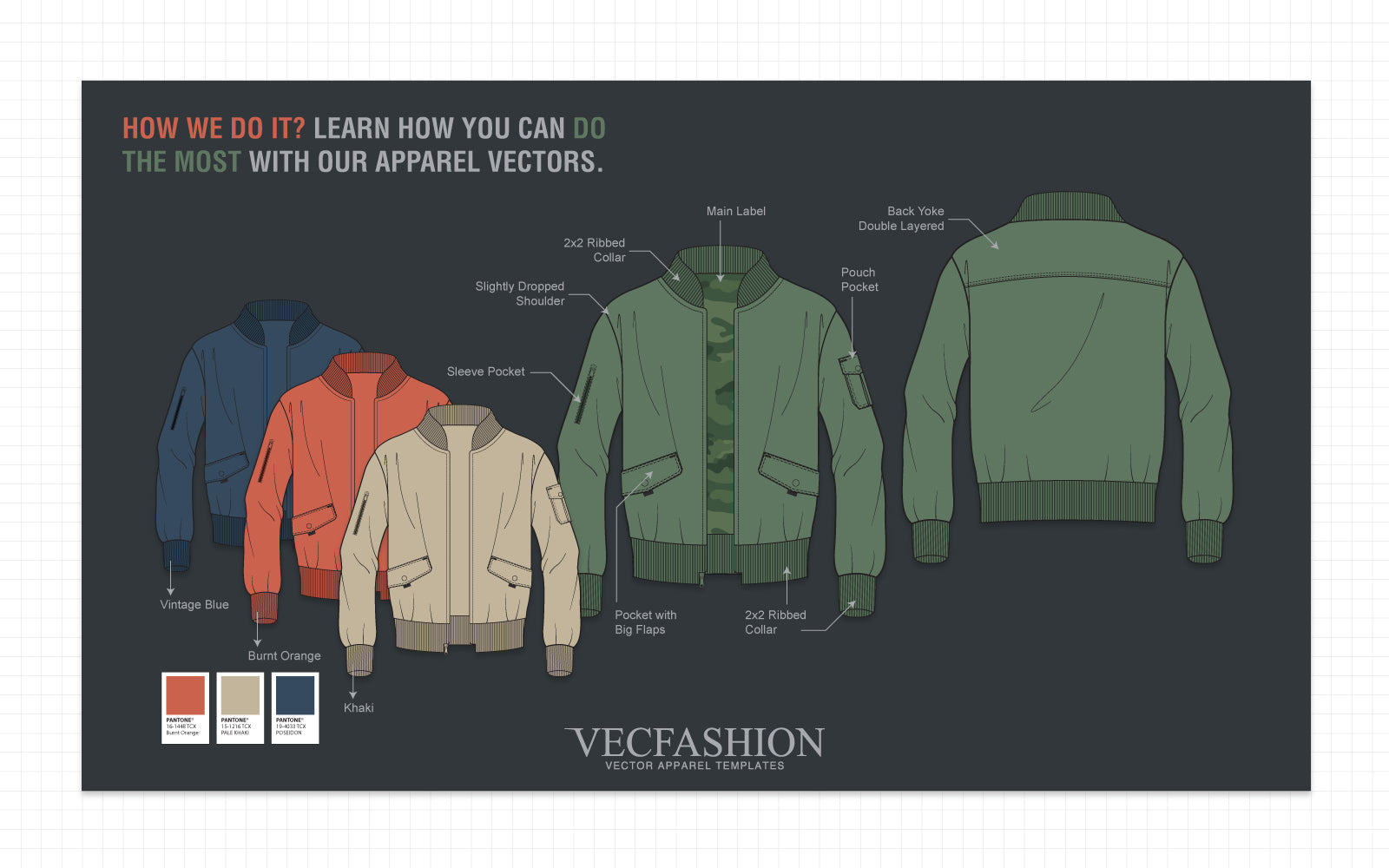

How to Edit a Vector Fashion CAD in Adobe Illustrator
Once you have a base garment template, whether it's one you drew yourself or one from a ready-made library, the real day-to-day work of a fashion designer usually isn't drawing from scratch, it's editing. Adjusting an existing CAD to fit a new design brief, adding a pocket here, swapping a collar there, is one of the most common tasks in a production workflow, and it's worth knowing how to do it efficiently.
Why Editing Skills Matter More Than You'd Think
Most collections aren't built from a blank page each season. Designers reuse and adapt proven silhouettes, changing details to create new styles quickly. Being fast and precise at editing an existing vector CAD, rather than rebuilding it, is what actually saves time in a real production timeline.
Working with Layers and Groups
Before editing anything, check how the file is organized. A well-built CAD template will have separate groups for the base silhouette, construction details, and shading, exactly the structure we use across our own template library. If groups are labeled clearly, you can isolate just the element you want to change (a pocket, a cuff, a zipper) without accidentally shifting the rest of the drawing.
- Use the Layers panel to identify and isolate the group you need to edit
- Lock any layers you are not currently working on to avoid accidental changes
- Ungroup only the specific element you're editing, then re-group it once finished
Adding a New Construction Detail
To add something that isn't already on the template, such as a new pocket, panel, or trim detail, use the Pen tool to draw the new shape directly on top of the existing garment outline, matching its perspective and proportions. Keep your new element on its own layer temporarily so it's easy to reposition or delete if it doesn't look right at first.
- Match your new detail's stroke weight to the rest of the drawing for visual consistency
- Use Smart Guides (View > Smart Guides) to snap your new shape into alignment with existing seam lines
- Group the finished detail once it's positioned correctly
Removing or Replacing an Existing Detail
To remove a detail entirely, select it directly (you may need to enter the group by double-clicking) and delete it, then check that no stray anchor points or underlying shapes were left behind. To replace one detail with another, such as swapping a patch pocket for a welt pocket, delete the old element first, then draw the replacement in the same position for a cleaner result than trying to reshape the old one.
Adjusting Proportions Without Distorting the Drawing
If you need to lengthen a sleeve, widen a body panel, or adjust any proportion, use the Direct Selection tool to move only the specific anchor points that need to shift, rather than scaling the whole group, which can distort stroke weights and construction details unevenly.
Recoloring for a New Colorway
Once your edits are complete, updating the color is usually the fastest part. Select a shape of the color you want to change, then apply a new swatch, Illustrator will update every matching shape in one action, provided your colors were applied consistently to begin with.
Watch It in Action
For a visual walkthrough of this process, watch our short video below, showing how we add and adjust construction details on one of our own CAD templates.
When to Start from a Ready-Made Template Instead
If you'd rather skip the base drawing entirely and start editing right away, our library of ready-made, fully editable fashion flat sketches gives you a clean, well-organized file to customize from day one. And if the specific style you need isn't in our library yet, our Custom Flat Sketches service can build it for you from scratch.
FAQ
Can I edit a fashion CAD template without redrawing it?
Yes. A well-organized CAD template separates the base silhouette, construction details, and shading into distinct groups, so individual elements like pockets or trims can be added, removed, or adjusted without touching the rest of the drawing.
What's the difference between editing a CAD and drawing one from scratch?
Editing means modifying an existing file, adjusting proportions, adding details, or recoloring, while drawing from scratch means building the entire silhouette and construction detail from a blank artboard. Most day-to-day design work involves editing existing templates rather than starting fresh each time.
Do I need advanced Illustrator skills to edit a fashion CAD?
Basic familiarity with the Pen tool, Direct Selection tool, and Layers panel is enough to make most common edits, like adding a pocket or adjusting a hemline. More advanced changes benefit from experience, but the core techniques are learnable.
